STandard sweeper HD
The düvelsdorf Standard sweeper HD is an alternative to a road sweeper. The device has 9 rows of brushes, a robust body made of 5 mm sheet metal and the option of mounting various attachments. Flexible and practical for any business.
At a glance
- Working width 1,50 m, 2,25 m, 3,00 m
- 9 Number of brush rows
- robust body made of 5 mm sheet metal

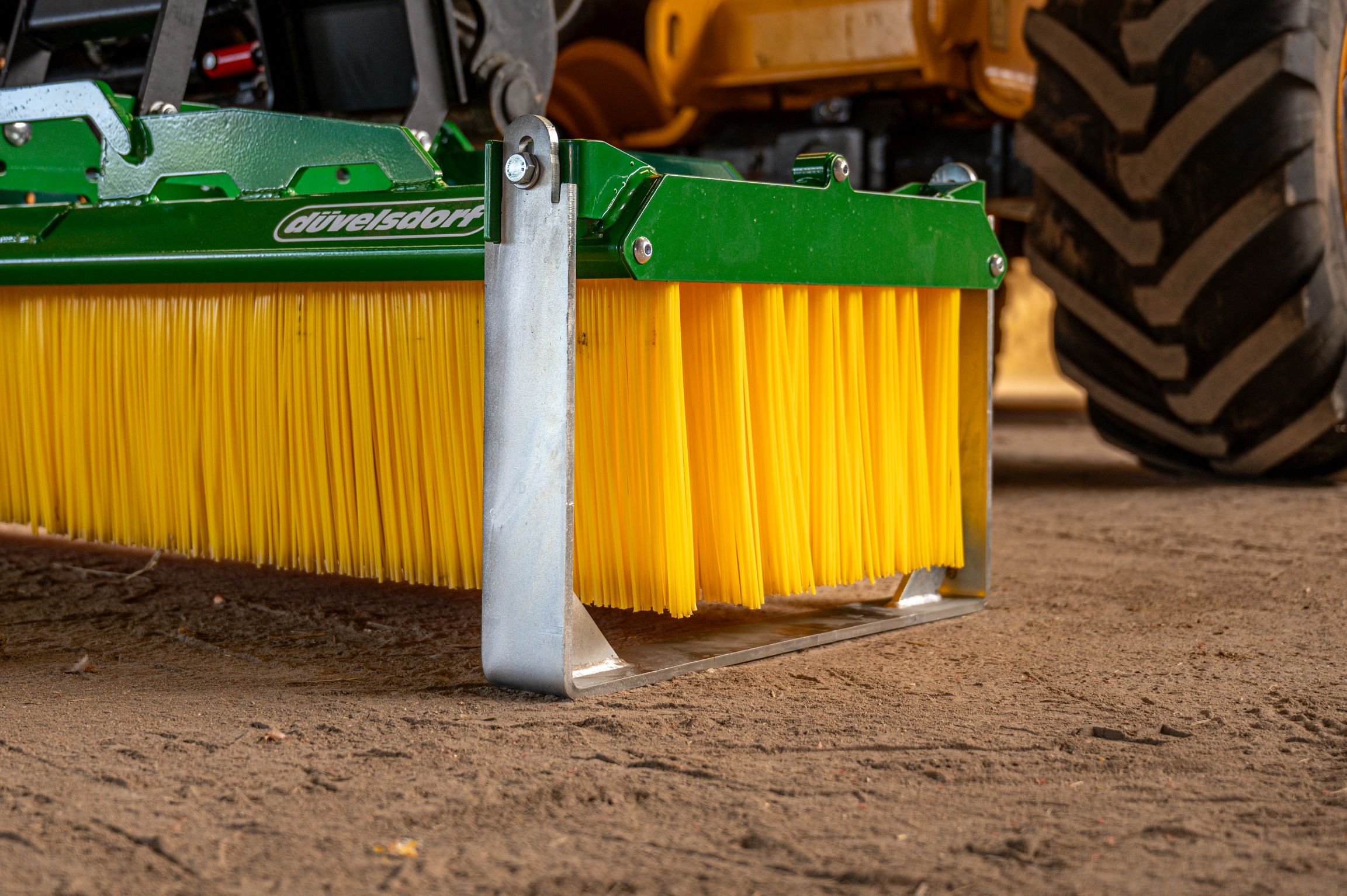

- Stable supports for safe attachment
- Works better thanks to angled outer brush strips
- Angled outer brush stripes on both long sides mean that the brush works in both directions of travel
- Different attachments offer high flexibility
Technical Data
| Working width in m | 1,5 / 2,25 / 3 |
| Number of brush rows | 9 / 9 / 9 |
| Number of brush stripes | 16 / 25 / 32 |
| Bristle length in mm | 280 / 280 / 280 |
| Dimensions of forklift pockets in mm (WxH) | 180x70 / 180x70 / 180x70 |
| Dimensions of forklift pockets with locking mechanism in mm (WxH) | 155x70 / 155x70 / 155x70 |
Power grab shovel bucket attachment
Forklift attachment
D-LOCK attachment

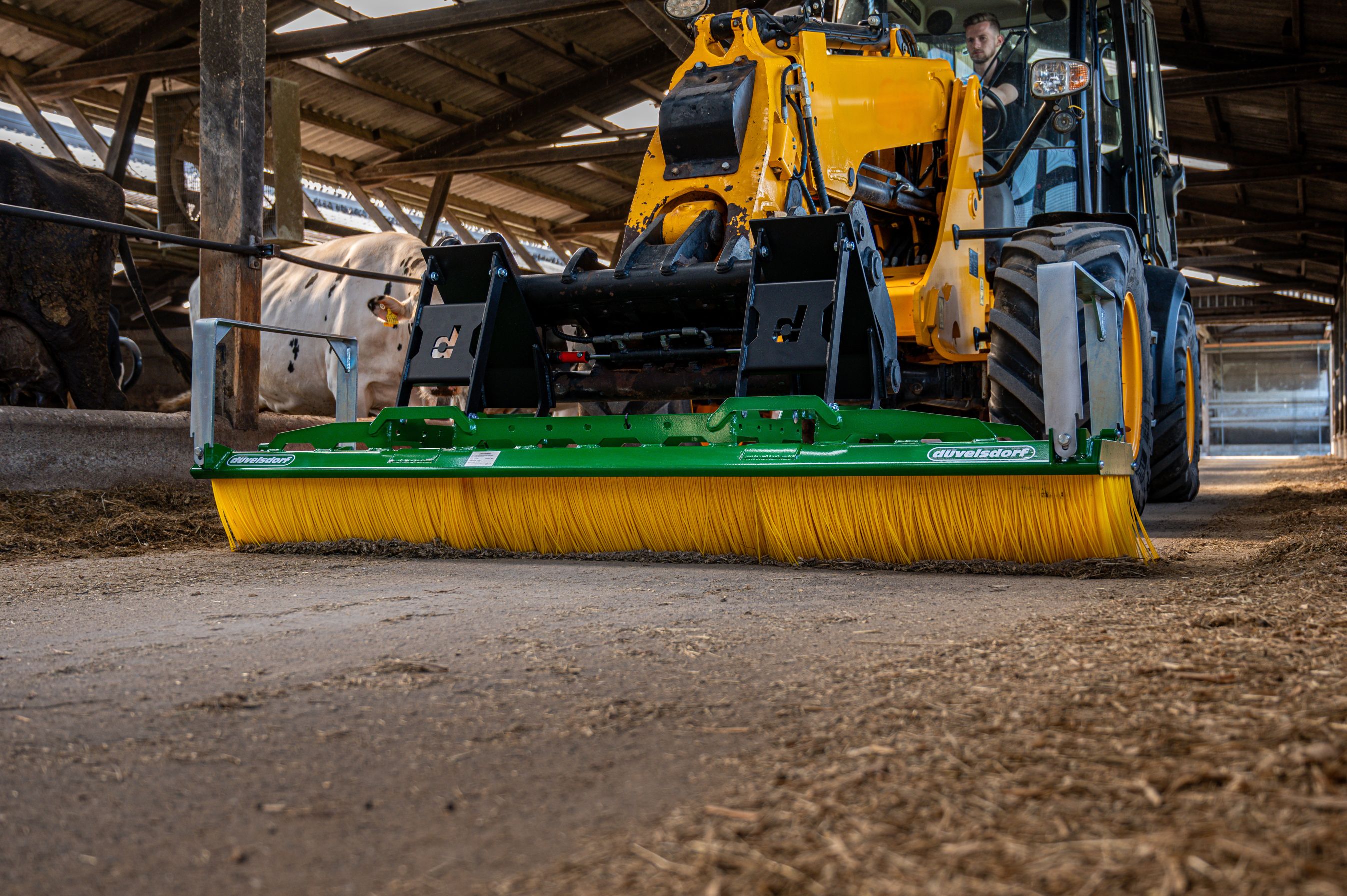

Standard sweeper HD in use
Artikel-No. at a glance
| designation | kg | Artikel-No. | |
| Standard sweeper HD 1,50 m EURO | 129 | 4510500 | |
| Standard sweeper HD 1,50 m D-LOCK | 140 | 4510510 | |
| Standard sweeper HD 1,50 m power grab shovel bucket attachment | 149 | 4510520 | |
| Standard sweeper HD 1,50 m forklift attachment | 108 | 4510530 | |
| Standard sweeper HD 2,25 m EURO | 172 | 4510600 | |
| Standard sweeper HD 2,25 m D-LOCK | 183 | 4510610 | |
| Standard sweeper HD 2,25 m grab shovel bucket attachment | 192 | 4510620 | |
| Standard sweeper HD 2,25 m forklift attachment | 151 | 4510630 | |
| Standard sweeper HD 3,00 m EURO | 207 | 4510700 | |
| Standard sweeper HD 3,00 m D-LOCK | 218 | 4510710 | |
| Standard sweeper HD 3,00 m grab shovel bucket attachment | 227 | 4510720 | |
| Standard sweeper HD 3,00 m forklift attachment | 186 | 4510730 | |
| ACCESSOIRES | |||
| Forklift entry pockets (also optional for EURO, D-LOCK or power grab shovel bucket attachment) | 11 | 4510940 |
