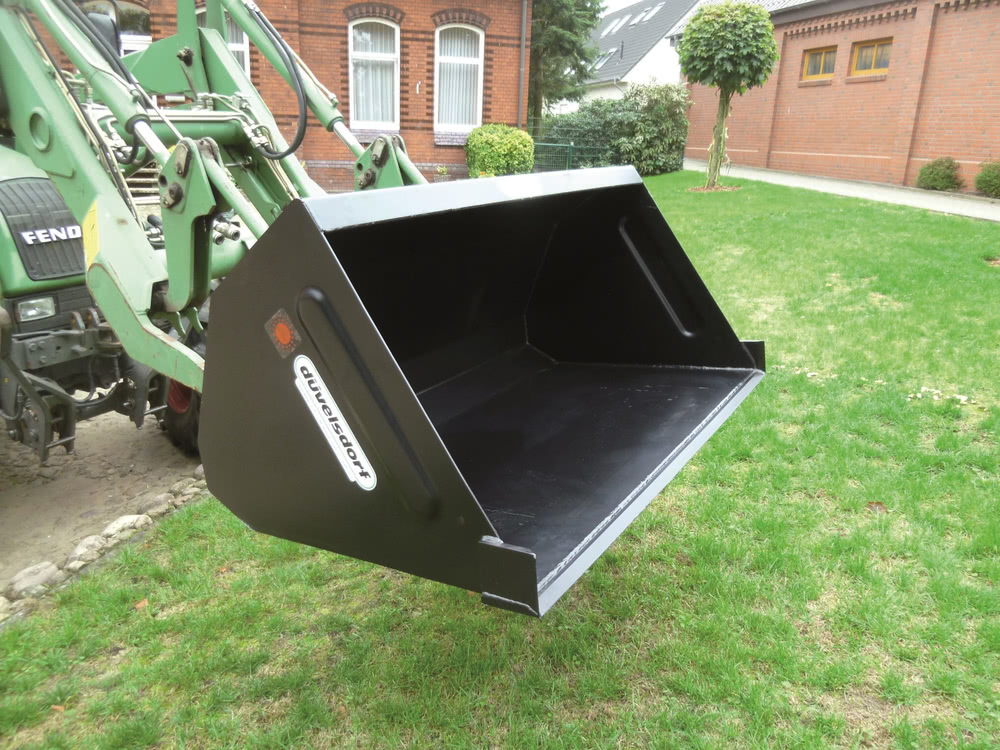

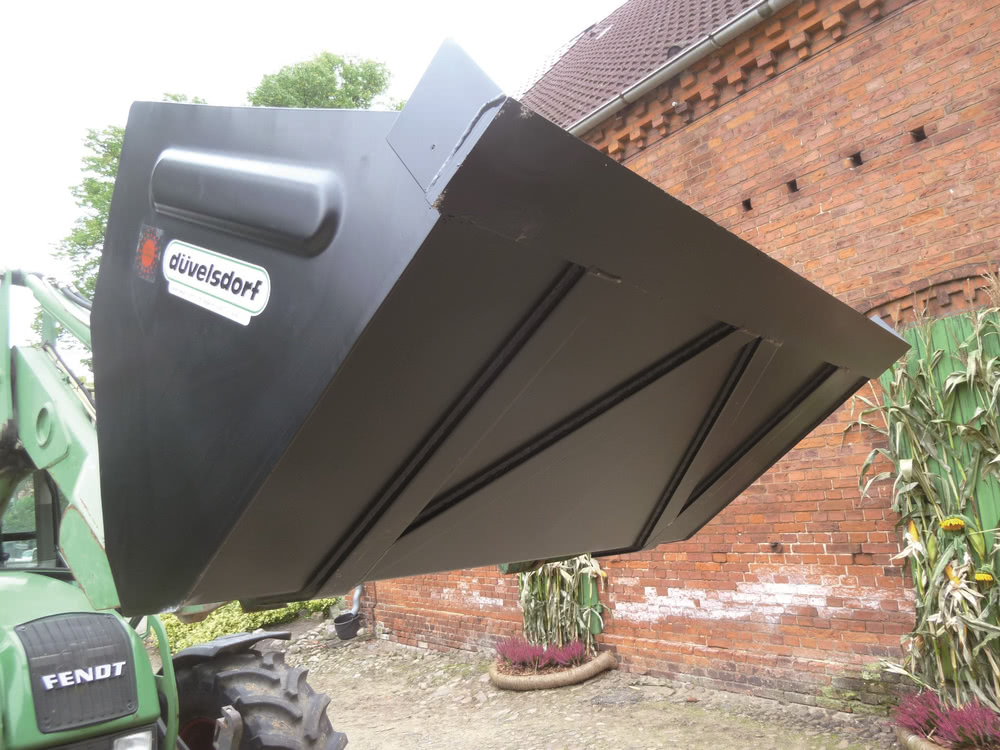

soil bucket euro
The düvelsdorf soil bucket EURO is used for loading and transporting heavy loads of different types as well as for earthworks.
At a glance
- Conical construction
- Forged hook
- scrape rail
- Hard metal scraper bar
- Side strengthened beads
Technical data
| Height: | 640 mm |
| Depth: | 890 mm |
Article numbers
| designation | kg | art. no. | |
| Soil bucket 1.20 m EURO, 0.4 m³, no middle bar | 183 | 3315120 | |
| Soil bucket 1.40 m EURO, 0.5 m³, no middle bar | 200 | 3315140 | |
| Soil bucket 1.60 m EURO, 0.6 m³, no middle bar | 213 | 3315160 | |
| Soil bucket 1.80 m EURO, 0.7 m³, no middle bar | 230 | 3315180 | |
| Soil bucket 2.00 m EURO, 0.8 m³, no middle bar | 247 | 3315200 | |
| Soil bucket 2.20 m EURO, 0.9 m³, two middle bars | 282 | 3315220 | |
| Soil bucket 2.40 m EURO, 1.0 m³, two middle bars | 312 | 3315240 | |
| Soil bucket 2.60 m EURO, 1.1 m³, two middle bars | 326 | 3315260 |
Individually welded attachements on request (e.g. Weidemann, Schäffer, Volvo, Bobcat,...)
