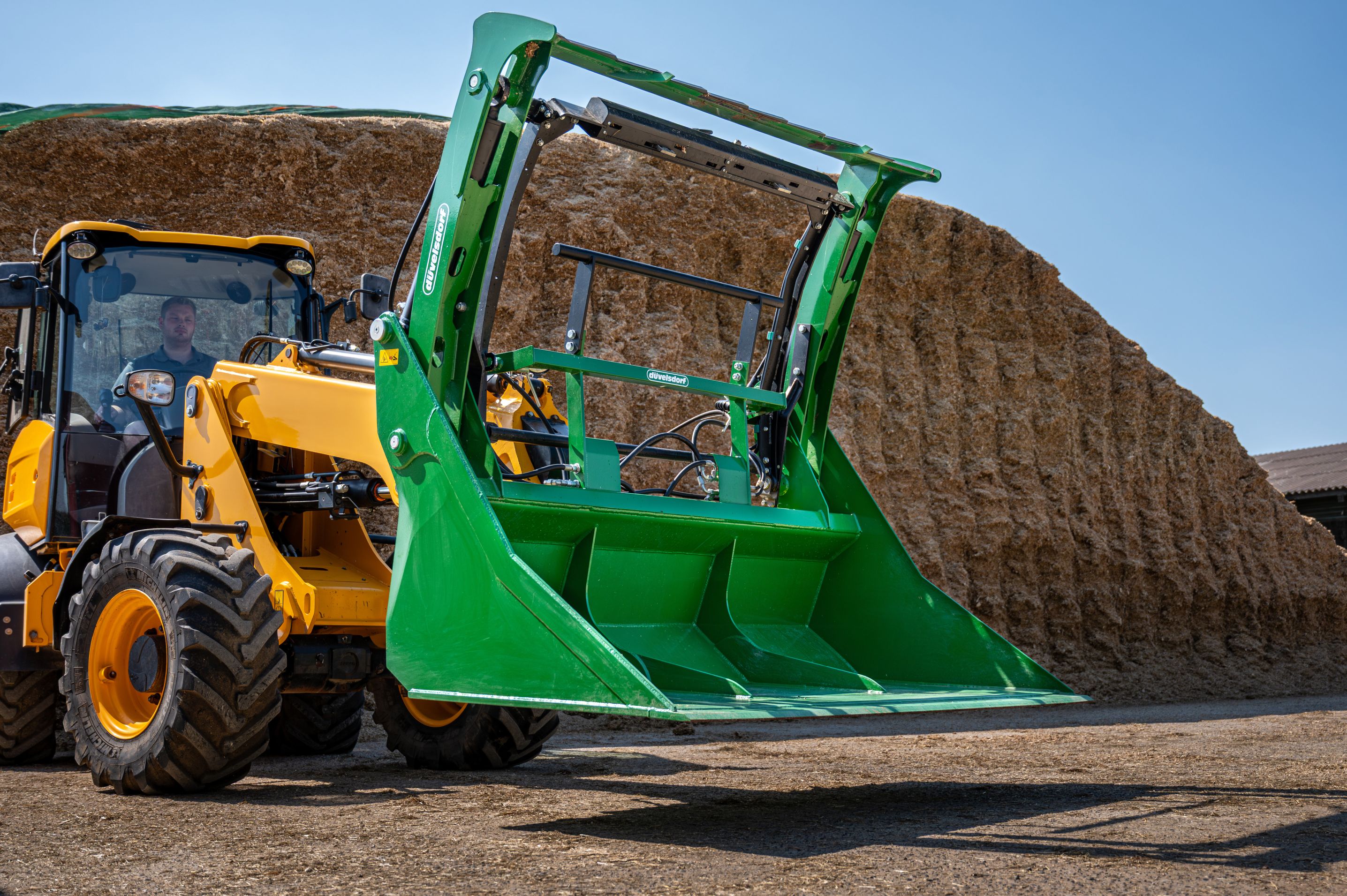

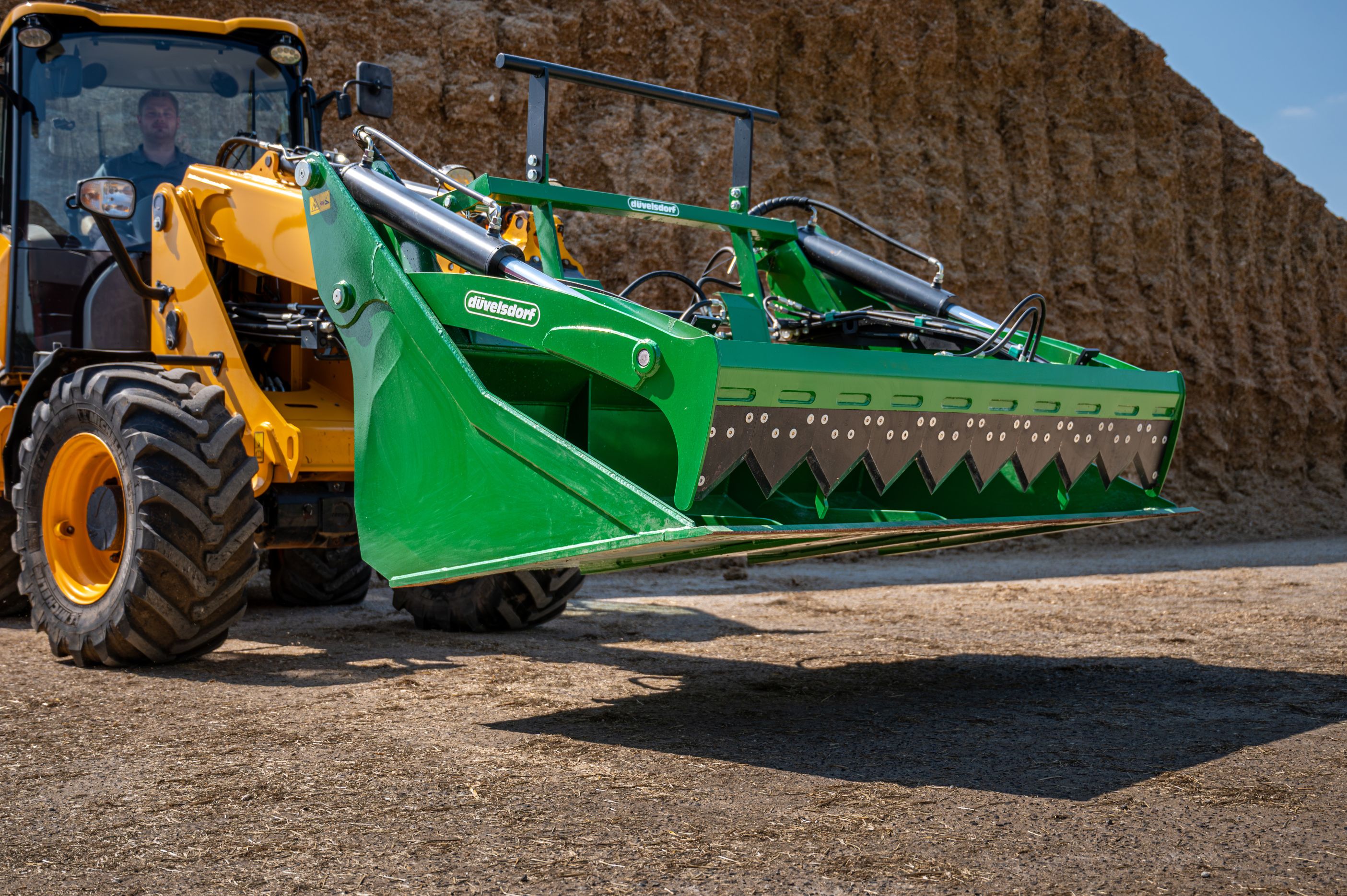

Bale cutting bucket

The bale cutting bucket from düvelsdorf has been specially developed for round bales
with a diameter of up to 2 m, whether silage, straw or hay.

The advantages

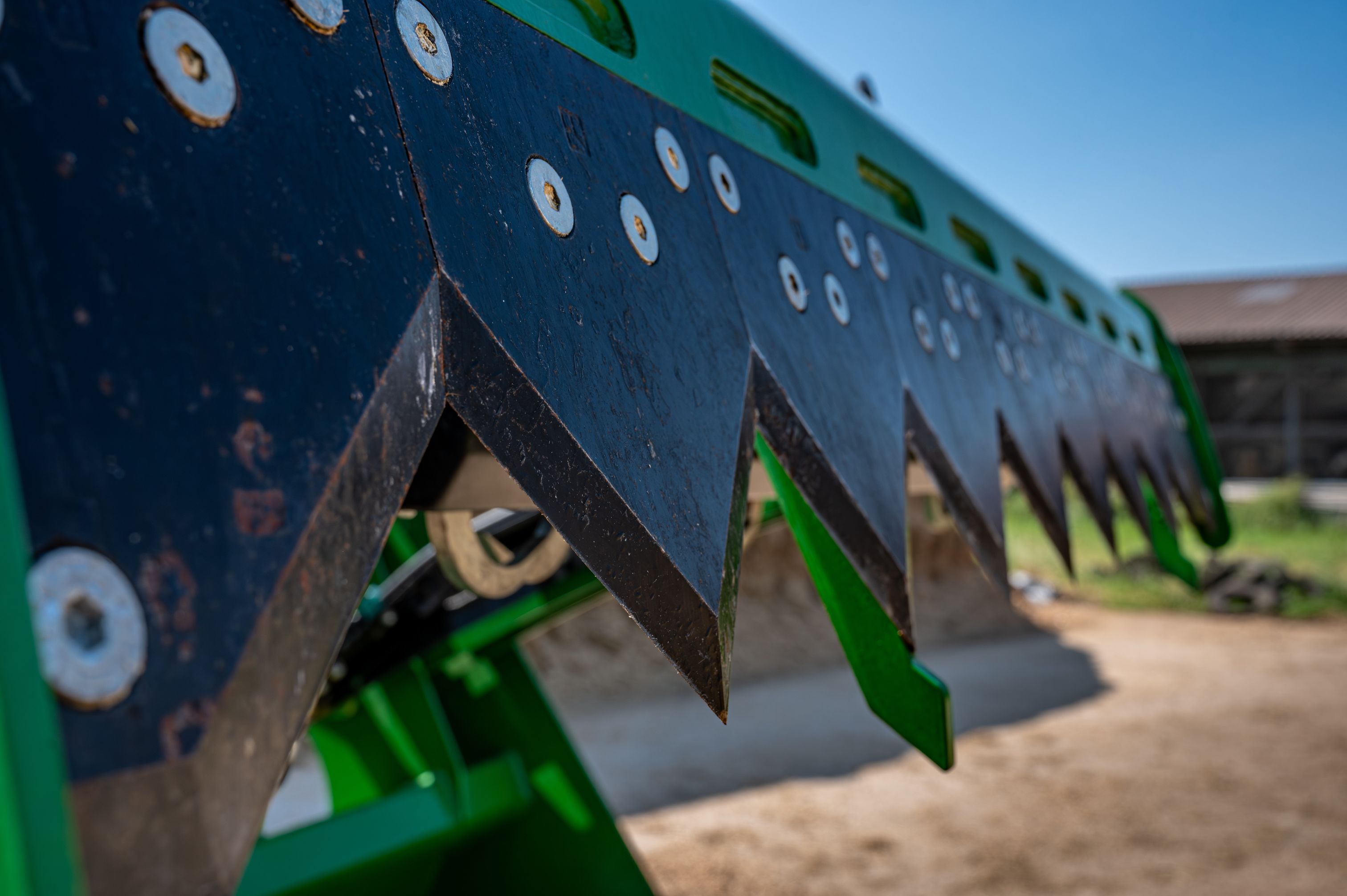

  • Hardened blades to effortlessly cut film, netting and the bales themselves

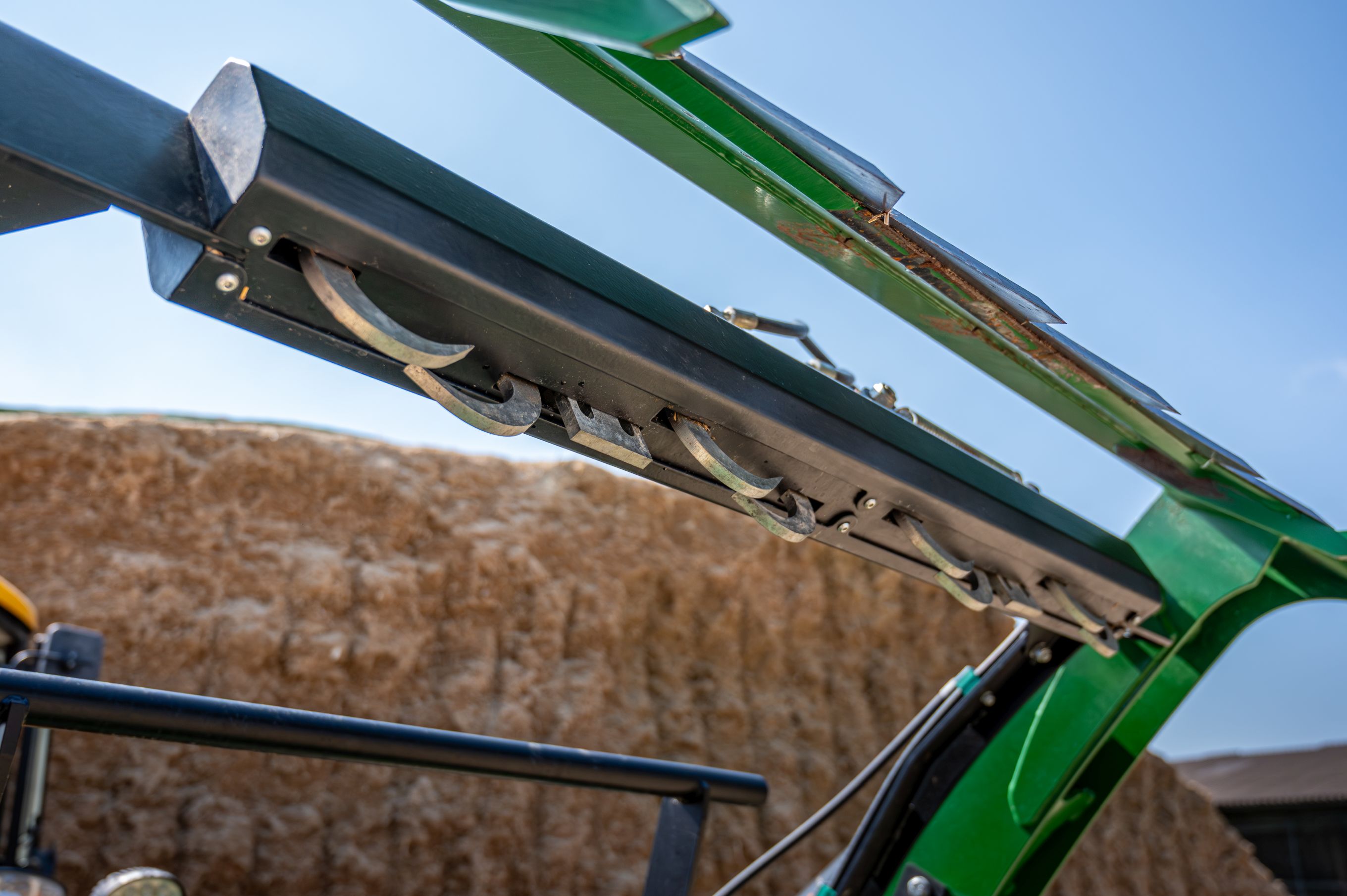

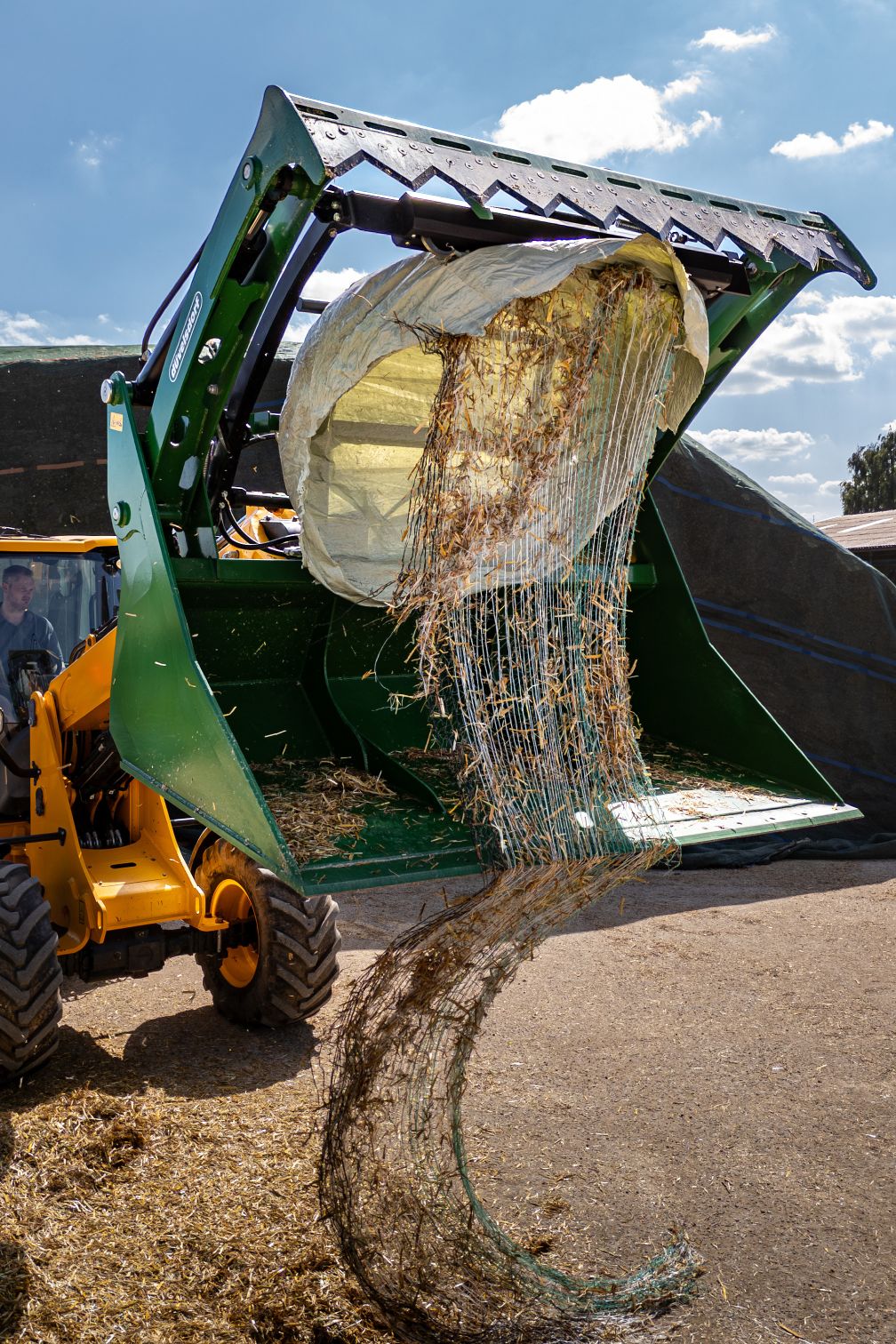

  • Film gripper holds net and film for clean separation of feed and wrapping
  • Individual blades can be replaced quickly and easily
  • Suitable for removing feed from silage piles
  • Can be optionally equipped with a hard-wearing Hardox interchangeable cutter for screwing on, for even greater durability
    in tough conditions

Technical Data

Width in m:
2,11
Weight in kg
approx. 895
Load capacity in kg:
1400
Maximum bale diameter in m:
2
Maximum bale width in m:
1,6
Maximum cutting force in tonnes:
approx. 8,6
Maximum working pressure in bar:
190
Hydraulic system 1 x double-acting
Bucket volume in m³ (water measure)1,32
Attachment:
EURO / individual attachment







Article no. at a glance

Maschinen­bezeichnungkg
Article no.
Bale cutting bucket
895
 3528120
Hardox interchangeable cutter for screwing on 52
 3528105
Pressure relief valve 1
 3528115
